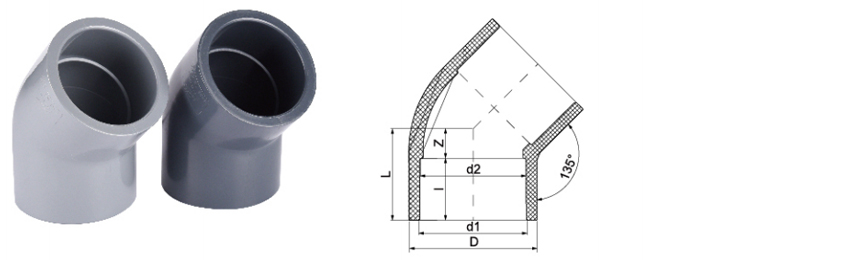

SCH8O/DIN UPVC/CPVC 45°Elbow

SCH8O/DIN UPVC/CPVC 45°Elbow

UPVC/CPVC 45° Elbow is widely used in building, industrial, and household water systems. Made from premium UPVC or CPVC materials, it offers corrosion resistance and pressure resistance, effectively withstanding chemical erosion.

The elbow is designed at a 45° angle, enabling flexible pipe redirection, reducing fluid resistance, and improving flow efficiency. It is lightweight, durable, and easy to install, suitable for various piping systems and ensuring firm connections for hot and cold water pipelines and other fluid transportation systems.

Contactaţi-ne
  • SCH8O/DIN UPVC/CPVC 45°Elbow
Anterior：SCH8O/DIN UPVC/CPVC Tee de reducere
Următorul：UPVC/CPVC Cross
parametru aplicație Standarde tehnice

  • SIZE/NOM.

    dn20

    dn25

    dn32

    dn40

    dn50

    dn63

    dn75

    dn90

    dn110

    dn140

    dn160

    dn225

    dn280

    dn315

    (DN15)

    (DN20)

    (DN25)

    (DN32)

    (DN40)

    (DN50)

    (DN65)

    (DN80)

    (DN100)

    (DN125)

    (DN150)

    (DN200)

    (DN250)

    (DN300)

    (1/2")

    (3/4")

    (1")

    (1-1/4")

    (1-1/2")

    (2")

    (2-1/2")

    (3")

    (4")

    (5")

    (6")

    (8")

    (10")

    (12")

    DIN

    d1

    20.3

    25.3

    32.3

    40.3

    50.3

    63.3

    75.3

    90.3

    110.4

    140.5

    160.5

    226.25

    281.45

    316.85

    d2

    20.1

    25.1

    32.1

    40.1

    50.1

    63.1

    75.1

    90.1

    110.1

    140.2

    160.2

    225.05

    280.05

    315.05

    UPVC

    D

    26.7

    32

    41

    50

    63

    74.6

    88

    104

    126.8

    164

    184.8

    254

    306

    345

    L

    23

    26

    31.5

    38.5

    46

    54

    67

    72

    86

    114

    125

    178

    212

    233

    I

    17

    19

    23

    27

    32

    38

    44

    51

    61

    76

    86

    119

    148

    165

    CPVC

    D

    26.5

    32

    41

    50.2

    62.8

    79

    91

    108.6

    132.4

    164.4

    188.6

    254

    306

    345

    L

    23

    26

    31

    38

    46

    56

    65

    76

    91

    114

    129

    178

    212

    233

    I

    16.5

    19

    22.5

    26.5

    31.5

    38

    44

    51

    61.5

    76.5

    86.5

    119

    148

    165

    ANSI

    d1

    21.51

    26.87

    33.62

    42.4

    48.54

    60.65

    73.39

    89.31

    114.81

    141.81

    168.81

    220.06

    273.81

    324.61

    d2

    21.25

    26.6

    33.3

    42.06

    48.18

    60.27

    72.9

    88.8

    114.21

    141.11

    168

    218.9

    272.67

    323.47

    D

    30

    35.5

    43.6

    53

    60

    72.8

    88

    108

    132

    164

    191

    254

    306

    345

    L

    28.7

    33.5

    37

    41.8

    47

    55

    62

    70.5

    86

    108.5

    121.2

    178

    212

    233

    I

    22.2

    25.5

    28.6

    31.8

    35

    39

    44.5

    50.5

    60

    70

    76.2

    101.6

    148

    165

    JIS

    d1

    22.4

    26.45

    32.56

    38.63

    48.73

    56.82

    58.63

    89.66

    114.27

    140.22

    165.16

    216.68

    267.21

    318.66

    d2

    21.75

    25.7

    31.71

    37.67

    47.76

    55.77

    57.67

    88.63

    113.2

    139.01

    163.9

    214.6

    264.88

    315.88

    D

    30

    35.5

    43.6

    53

    60

    72.8

    88

    108

    132

    164

    191

    254

    306

    345

    L

    28.7

    33.5

    37

    41.8

    47

    55

    62

    70.5

    86

    108.5

    121.2

    178

    212

    233

    I

    22.2

    25.5

    28.6

    31.8

    35

    39

    44.5

    50.5

    60

    70

    76.2

    101.6

    148

    165

SCH80/DIN UPVC/CPVC 45°Elbow - Industrial Flow Direction Management

Product Features

  • Material Composition: Manufactured from either unplasticized polyvinyl chloride (UPVC) or chlorinated polyvinyl chloride (CPVC), offering distinct properties for various media and temperature ranges.
  • 45-Degree Angle: Precision-molded for smooth, low-resistance directional changes in pressure piping systems, reducing turbulence and pressure loss.
  • Dimensional Adherence: Conforms to SCH80 and DIN standards, ensuring compatibility with corresponding pipes and fittings for secure, leak-proof connections.

Product Description

The SCH80/DIN UPVC/CPVC 45-degree elbow is engineered for reliable, permanent redirection of fluid flow in industrial applications. The molding process ensures a uniform wall thickness and a smooth inner surface. These fittings are subjected to rigorous quality control to meet performance requirements for pressure-rated systems. UPVC variants are suitable for cold water handling in chemical processing and water treatment, while CPVC elbows provide enhanced chemical resistance and a higher operational temperature range, up to 95°C (200°F), for use in hot corrosive fluid transport.

Technical Specifications

Standard Material Nominal Size Range Maximum Operating Pressure (at 23°C/73°F)
SCH80 UPVC/CPVC 1/2" - 8" Schedule 80 Pressure Ratings per ASTM D1785
DIN UPVC/CPVC DN15 - DN200 PN10 / 10 bar

Application Fields

This product is utilized in the following contexts:

  • Chemical Processing and Transfer Lines
  • Water and Wastewater Treatment Plants
  • Semiconductor Manufacturing Facilities
  • Plating and Galvanizing Operations
  • Industrial Plumbing and Drainage Systems

FAQ

1. How does a UPVC 45° elbow compare to a CPVC elbow in a corrosive chemical environment?

A UPVC elbow is effective for many corrosive media, especially at ambient temperatures. However, for applications involving more aggressive chemicals or elevated temperatures (up to 95°C), a CPVC elbow offers superior chemical resistance and mechanical integrity. The choice depends on the specific chemical concentration, temperature, and pressure of your process media. For detailed material compatibility data, our technical team can provide a free consultation based on your specific application requirements.

2. What is the difference between SCH80 and DIN elbows, and can they be used interchangeably?

SCH80 and DIN are distinct dimensional and pressure rating standards. SCH80 is based on the North American ASTM D1785 standard, featuring a thicker wall for higher pressure tolerance, while DIN (specifically DIN 8063) is a European metric standard with different outer diameters and pressure ratings (e.g., PN10). They are not designed to be used interchangeably due to non-matching pipe and fitting dimensions, which would compromise system integrity. Ensure all components in a system conform to the same standard to guarantee a secure, leak-proof installation.

Produse recomandate
Companie
Pipeline Zheyi (Wuhan) Co., Ltd.
Pipeline Zheyi (Wuhan) Co., Ltd.

ZHEYI Group Da China SCH8O/DIN UPVC/CPVC 45°Elbow Pentru industria alimentară/auto/electronică furnizor şi la comanda SCH8O/DIN UPVC/CPVC 45°Elbow Pentru industria alimentară/auto/electronică fabrică. Am fost fondați în 2007, concentrându-ne pe cercetarea și dezvoltarea, fabricarea, vânzarea și service-ul țevilor industriale din CPVC și UPVC. Compania a obținut o serie de certificări, inclusiv licența de producție a echipamentelor speciale, licența de igienă a produselor legate de apă din provincia Zhejiang, certificarea sistemului de management al calității IS09001, certificarea sistemului de management de mediu IS014001 și certificarea sistemului de management al sănătății și securității ocupaționale IS045001. Compania deține peste 50 de drepturi de proprietate intelectuală independente și drepturi de import și export auto-operate. Pentru a oferi produse diversificate și servicii mai bune, compania a introdus tehnologii avansate, echipamente de scule, materii prime și sisteme de management unice din Germania și Statele Unite. De-a lungul anilor, produsele noastre au fost utilizate pe scară largă în transportul prin conducte de lichide acide și alcaline, apă ultrapură, apă potabilă, apă pură de calitate electronică și ape uzate industriale în industriile chimică, metalurgică, fotovoltaică, energie nucleară, baterii litiu, semiconductori electronici, alimentară, medicală, auto, tratarea apei industriale și alte industrii. În prezent, Grupul ZHEYI a înființat peste 30 de companii de vânzări în toată țara, iar toate tipurile de produse sunt exportate în Europa, America, Asia de Sud-Est și alte țări și regiuni, fiind foarte apreciate de clienții interni și străini.

Certificat de onoare
  • ISO 9001: 2015
  • ISO 14001: 2015
  • ISO 45001: 2018
  • ISO 45001: 2018
  • ISO: 45001-2018 ro
  • National High-Tech Enterprise
  • Certificat
  • Certificat
Ştiri
Lăsaţi un mesaj
  • Pipeline Zheyi (Wuhan) Co., Ltd.
    Control strict al calității

    Grupul ZHEYI aderă la principiul „calității pe primul loc”, adoptă echipamente avansate la nivel internațional și materii prime de înaltă calitate, controlează strict fiecare verigă a producției și se angajează să ofere produse în curs de dezvoltare cu performanțe excelente și un aspect rafinat.

    Compania utilizează cele mai avansate echipamente de producție și materiale de înaltă calitate, inclusiv Sekisui din Japonia și Lubrizol din Statele Unite. „ZHEYI” combină perfect tehnologia de producție rafinată cu managementul profesional, iar fiecare produs este supus unui control strict al calității - de la producție, inspecție până la livrarea finală, asigurând combinația perfectă între aspect și funcționalitate.

  • Pipeline Zheyi (Wuhan) Co., Ltd.
    Testarea performanței de precizie
    La ZHEYI, fiecare produs este realizat meticulos, concentrându-se nu doar pe un design estetic rafinat, ci și pe o calitate intrinsecă excelentă. Testarea strictă a performanței asigură că produsul își poate menține stabilitatea și durabilitatea chiar și în condiții dure.:

    ● Testarea densității: Măsoară densitatea materialului pentru a asigura uniformitatea și stabilitatea structurilor.
    ● Testul de temperatură de înmuiere Vicat: evaluează gradul de înmuiere al materialelor în condiții de temperatură ridicată pentru a asigura capacitatea produsului de a rezista la deformare în diverse medii.
    ● Test la cuptor: simulează rezistența la căldură pe termen lung și verifică capacitatea produsului de a rezista la temperaturi ridicate pentru o perioadă lungă de timp.
    ● Test hidrostatic: Evaluează rezistența țevilor în condiții de presiune ridicată pentru a asigura siguranța și fiabilitatea produsului.
    ● Test de impact cu ciocanul: Testați rezistența la impact a produsului în timpul transportului, instalării și utilizării zilnice.

SCH8O/DIN UPVC/CPVC 45°Elbow Cunoștințe din industrie

Performance comparison of UPVC and CPVC 45° elbows: corrosion resistance, temperature range and applicable scenario analysis

In industrial piping systems, UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) are two widely used thermoplastic materials, and their 45° elbows play a key role in fluid transportation. This article will compare the performance of the two in terms of corrosion resistance, temperature range and applicable scenarios, and analyze them in combination with the application needs of different industries.

1. Corrosion resistance comparison
UPVC: It has excellent resistance to acids, alkalis, salts and some organic solvents, but has weak tolerance to strong oxidizing acids (such as concentrated sulfuric acid and nitric acid) and aromatic hydrocarbons and chlorinated hydrocarbons, and is suitable for general corrosive environments.

CPVC: Further chlorination on the basis of UPVC, it has stronger chemical corrosion resistance, can withstand higher concentrations of strong acids, strong alkalis and some organic solvents, and is suitable for highly corrosive medium transportation.

Industry application analysis
Safe drinking water (Drinking Water): UPVC is suitable for cold water transportation, while CPVC can be used in hot and cold water systems, especially for occasions requiring high-temperature disinfection.
Metallurgy: CPVC is more suitable for strong corrosive processes such as pickling and electroplating, while UPVC can only be used in weak acid environments.
Photovoltaic: CPVC is suitable for high-concentration etching solution transportation, while UPVC can be used for general chemical pipelines.
Nuclear Power: CPVC has better high temperature and radiation resistance and is suitable for cooling water systems, while UPVC is only suitable for low-temperature water circulation.
Electronic Semiconductor: CPVC is more suitable for high-purity chemicals (such as etching solution, ultrapure water) transportation, while UPVC can be used for low-corrosive media.
Medicine: CPVC is suitable for high-temperature sterilization pipelines and corrosion-resistant liquid transportation, while UPVC has lower applicability.
Industrial Water Treatment: UPVC can be used in general filtration systems, while CPVC is suitable for high-temperature softened water or chemical agent addition.
Industrial Wastewater: CPVC is more suitable for strong acid/strong alkali wastewater treatment, while UPVC is only suitable for ordinary wastewater.

2. Temperature range comparison
UPVC: The working temperature range is usually 0°C ~ 60°C. Long-term high temperature can easily cause deformation and is only suitable for low-temperature or normal-temperature fluids.
CPVC: Stronger temperature resistance, working temperature range -40°C ~ 93°C, can withstand 110°C in a short period of time, suitable for high-temperature hot water, steam and thermal engineering material transportation.

Industry application analysis
Safe drinking water: UPVC is suitable for cold water pipes, and CPVC can be used for hot water supply systems.
Nuclear power plant: CPVC is suitable for medium and high temperature cooling media, and UPVC is limited to low-temperature circulating water.
Pharmaceutical industry: CPVC can be used for high-temperature sterilization pipes, while UPVC is not applicable.
Industrial water treatment: UPVC is suitable for normal temperature filtration, and CPVC can be used for boiler water supply or high-temperature softened water systems.

3. Summary of applicable scenarios
Recommended applications of UPVC 45° elbows
Low-temperature, low-corrosive environments, such as:
Municipal drinking water (cold water pipelines)
General chemical transportation in the photovoltaic industry
Low-temperature filtration systems for industrial water treatment

Recommended applications of CPVC 45° elbows
High-temperature, highly corrosive environments, such as:
High-purity chemicals and etching liquid transportation for electronic semiconductors
Pickling and electroplating liquid pipelines in the metallurgical industry
Medium- and high-temperature cooling systems in nuclear power plants
High-temperature sterilization and corrosion-resistant liquid transportation in the pharmaceutical industry
Strong acid/alkali wastewater systems in industrial wastewater treatment
